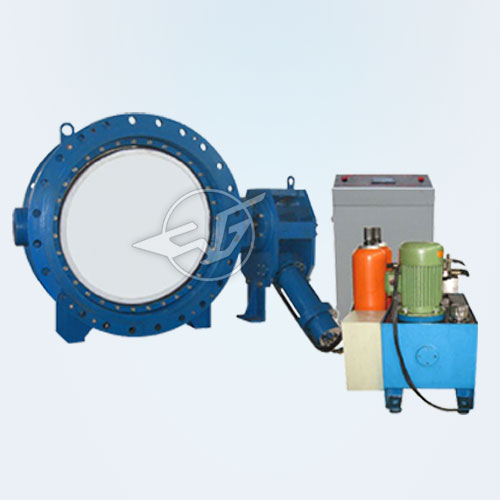

Model: HD7x41X
Nominal diameter: DN400 ~ 1600mm
Nominal pressure: PN0.6 ~ 1.6MPa
Suitable medium: water, water, sediment water
Operating temperature: ≤80 ℃
Design and manufacturing: GB / T14478, JB / T5299
Length of the structure: GB / T12221
Piping flange: GB / T9112 ~ 9131, JB / T74 ~ 90, GB / T12380
Accumulator standard: GB / T2352
Test and inspection: GB / T14478, GB / T13927

1. HD7x41X accumulator type liquid control slow closing butterfly valvepurposes

Hydraulic check butterfly valve is currently the more advanced control equipment, mainly used in hydropower station, water pump room and electricity, petroleum, chemical, metallurgy, mining and other types of pumping stations installed in the turbine inlet or outlet pipe, For the deadline, only use.

2. HD7x41X accumulator type liquid-controlled slow-closing butterfly valve features

1, can be opened and closed according to the program; in the case of normal power supply and sudden power failure can automatically according to the scheduled time and angle sub-fast, slow two-stage closure; adjustment range, adaptability.

2, destructive water hammer can be eliminated to prevent the pump and turbine runoff occurred, effectively reducing the pressure fluctuations in the network management system to ensure the safe and reliable operation of equipment.

3, the valve can replace the pump outlet of the original electric gate valve and check valve function, reduce the area and infrastructure investment. At the same time, its flow resistance coefficient is only 0.1 ~ 0.6, far less than the flow resistance coefficient of check valve (1.7 ~ 2.6), energy-saving effect is obvious.

4, the company S (lock type), B (dwelling type), X (accumulator type) three types of liquid control check butterfly valve products are different ways to solve the domestic similar products under heavy hammer Disadvantages, greatly enhance the reliability and security of the system. At the same time, the company can be individually designed according to the special requirements of users, multi-faceted to meet the needs of users of such products. D.HD7x41X accumulator type hydraulic control slow closing butterfly valve main performance parameters.

3. HD7x41X accumulator type liquid-controlled slow closing butterfly valve product standards and norms

Design and manufacture	Structure length	Piping flange	Accumulator standard	Test and inspection
GB / T14478, JB / T5299	GB / T12221	GB / T9112 ~ 9131 JB / T74 ~ 90, GB / T12380	GB / T2352	GB / T14478, GB / T13927

Four. HD7x41X accumulator-type liquid-controlled slow-closing butterfly valve main performance parameters

model	Nominal pressure PN (MPa)	Shell test	Seal test	Operating temperature ℃	Suitable media
HD7x41X	1.0 * PN	1.5 * PN	1.1 * PN	≤80	Water, sea water, sediment water

1, HD7x41X accumulator type liquid-controlled slow-closing butterfly valve main dimensions

DN	PN	L	L1	L2	L3	L4	Flange connection size
400	0.6	216	556	1449	320	440	GB / T17241  GB / T9113
	1.0	216	556	1449	330	440
	1.6	216	556	1449	345	440
450	0.6	222	556	1449	370	440
	1.0	222	556	1449	380	440
	1.6	222	580	1449	395	490
500	0.6	229	580	1449	400	440
	1.0	229	580	1449	410	490
	1.6	229	580	1449	425	490
600	0.6	267	580	1449	440	490
	1.0	267	580	1449	460	490
	1.6	267	625	1820	470	490
700	0.6	292	625	1449	436	490
	1.0	292	625	1820	550	545
	1.6	292	625	1820	570	545
800	0.6	318	625	1820	625	490
	1.0	318	625	1820	640	545
	1.6	318	625	1820	660	545
900	0.6	330	625	1820	700	545
	1.0	330	625	1820	710	545
	1.6	330	675	1820	725	610
1000	0.6	410	625	1820	760	610
	1.0	410	675	1820	770	610
	1.6	410	675	2180	790	610
1200	0.6	470	675	1820	875	610
	1.0	470	675	2180	890	610
	1.6	470	729	2180	915	720
1400	0.6	530	729	2180	1000	720
	1.0	530	729	2180	1020	720
	1.6	530	781	2180	1045	960
1600	0.6	600	781	2180	1120	720
	1.0	600	781	2180	1140	960
